Quick Details

  • Condition: New
  • Type: Injection Blow Molding
  • Style: Vertical
  • Brand Name: JASU
  • Model Number: ISB 800-3
  • Place of Origin: China (Mainland)
  • Plastic Type: Thermoplastic
  • Automatic: Yes
  • Injection Weight: Adjustable
  • Injection Rate: Adjustable
  • Clamping Force: 80KN
  • Opening Stroke: 245MM
  • Power(W): 22kw
  • Certification: CE ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: ISB 800-3
  • COLOR: BLUE & BLACK
  • Warranty: 1 YEAR
  • AFTER-SALE: ENGINEER SUPPORT
  • SHIPPING: SUPPORT BY TEAM
  • Voltage: 380V/50HZ
  • MACHINE DIMENSION: 3.8*1.45*3.0 M

Packaging & Delivery

Packaging Details wooven package film
Cover PICC insurance for cargoes
professional shipping team follow
custom clearance support
Delivery Time 15 days-25 days after order confirmation
Product Description

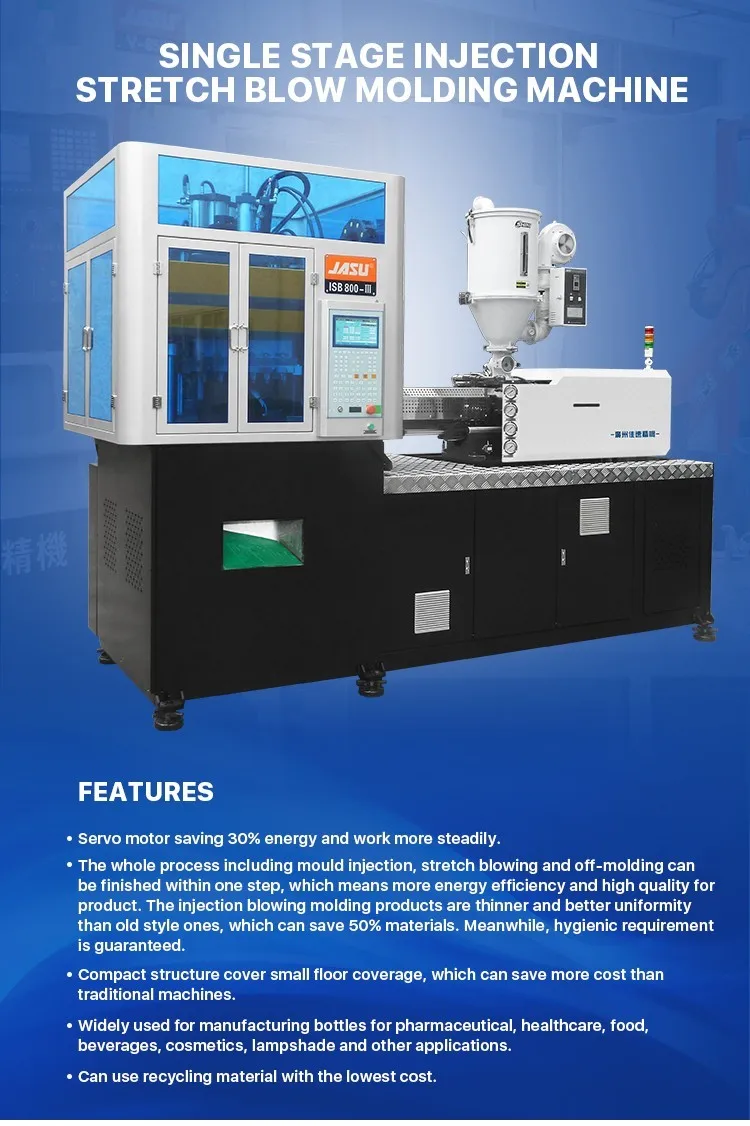

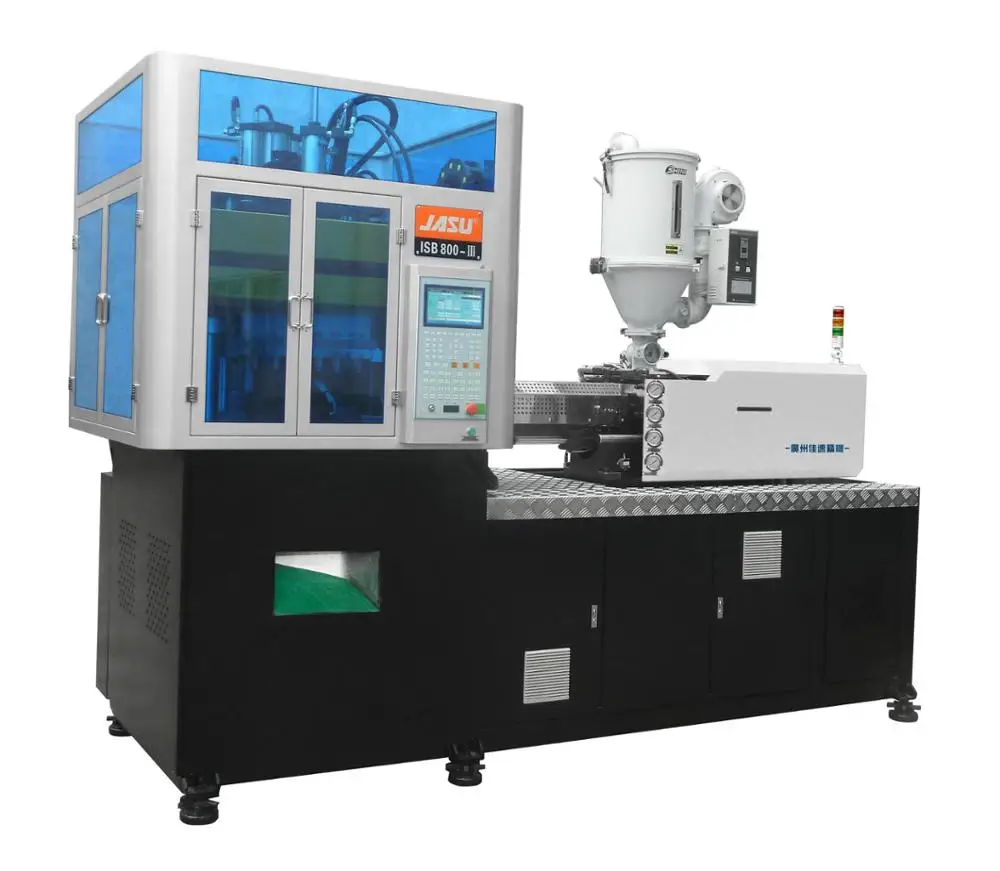

JASU SINGLE STAGE INJECTION STRETCH BLOW MOLDING MACHINE:  ISB 800-3



1.HIGH PERFORMANCE   CLEAN & Nice  save labro & save space

2.HiGH EFFECTIVE           Raw material no waste

3.HIGH ENERGY               one step















MACHINE PARAMETER:

Model

ISB 800-3
Injection Part
Screw Diameter40mm
Screw L/D Ratio20.5:1
Screw Speed0-190RPM
Theoretical Injection Capacity238cm3
Injection Pressure174Mpa
Max. Hydraulic Pressure140Kg/cm
The Actual Injection Quantity(PS):225g(ps)/8Oz
Screw Stroke:190Mm
Clamping Part
Blow Clamping Force:80Kn
Clamp Tonnage:400Kn
Wheel Diameter:800mm
Max. Height of Bottle:ISB:145/IB:140
Open Vertical Mode Trip:430mm
Others
Max. Pump Pressure:16Mpa
Motor Oil:18.5Kw
Electric Power:12.2Kw
Oil Tank:400L
Overall Dimension(L*W*H):3.8m*1.45m*3.0m



 *****SINGLE STEP BENEFITS, REMOVE MOLDING DISADVANTAGE FACTOR LEAST MOLDING STEP.****





JASU injection blow molding machine advantage, we are national patent products :

1)Electrical servo motor  drive,avoid hydraulic dirty product.

2) Full automatic control ,easy operation.

3) material barrel and hot runner temperature control accurately by PIT

4) save more cost than traditional machine.

5) compact structure. Less space needed

6) Injection:

     Hot runner and temperature control device and standard configuration only change mold to make a new            product.

     Blow:Hydraulic mold clamping,core insert,blow and bottom molding are standard configuration.

     Product release :Ejector is a standard device

7) PROVIDE THE WHOLE SERVICE FOR MOLDING DESIGN AND MANUFACTURE.



If you have interesting in our products, please click her to send us a inquiry , we have someone who tell you  solutions products and professional team to handle your business from pre-sale to after-sale. incluing : comment feedback ,delivery time confirmation , shipping issue, loading cargoes and custom clearance. Thank you !

https://jasu-cnc.en.alibaba.com/?spm=a2700.details.pronpeci14.1.34ec4cd1XtJp6r





Packaging & Shipping
PACKAGE : WOVEN PACKAGE WITH FILM
EXPORT:    BY OCEAN; CONTAINER
CUSTOM CLEARANCE :


Our Services



 Pre-Sales Service                                        After-Sales Service

* Inquiry and consulting support.           * Training how to instal the machine, training how to use the machine.

* Sample testing support.                                           * Engineers available to service machinery overseas.

* View our Factory.                                                               * Shipping Team support

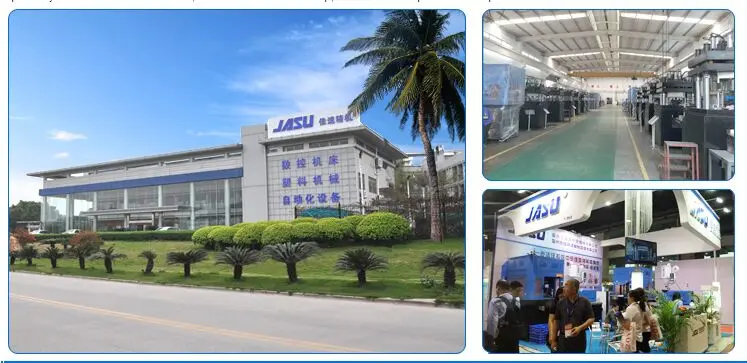

Company Information



GUANGZHOU JASU MACHINE CO., LTD   Specialize in manufacturing one step INJECION BLOW MOULDING MACHINE .we supplied to the high quality, high precision plastic containers making machine with low cost and low energy consumption.

More than 100 employees and 30 professional technicians dedicate themselves to JASU brand series machines, our R&D department devotes to constantly developing new blow technology.We have set up 30 representative offices and 24hours maintenance service network throughout China.

JASU established 2003 with a high reputation from customers china and abroad, specially the oversea customers from Southeast Asia, Middle East, Africa, Europe, South America, etc. At the end of 2014, the export amount took up 60% of the yearly sales.

we are Located in Pearl River delta area, closing to vessel port and air transportation services, special near HONGKONG air port, we have the competitive advantage of a fast delivery system and centralized supply chain center.We sincerely wish to invite the trade partners and import buyers to visit our showroom, as well as the workshop, to discuss the future cooperation.





FAQ
 Q1: All of your products are made by your self or compacted via purchasing the others?

A1: We have independent technical team who focus on making machines; all the products are made by our technical team.

Q2: What is the ability of your factory?
A2: About blow molding machine, we could produce 15sets machine per month

Q3: Do you have any technical supports about your products?
A3: We have had long term collaboration with German, and we have a lot of cooperation with a lot of advanced manufacture company on the world.

Q4: Do you have any other service about your products?
A4: We have a lot of experience on making complete “Turn-Key” projects and specifications for our clients. Also we have a fixed service system

Q5: How do you make the quotation for clients?
A5: The price depends on quality and performance but the clients should be satisfied us at first
