2017 new design good price Plastic bottle making injection stretch blow moulding machine machinery for hot sale

FOB Reference Price:Get Latest Price
US $10,000-70,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Injection Blow Molding
Style:
Vertical
Brand Name:
JASU
Model Number:
ISB 800-3
Place of Origin:
China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
Adjustable
Injection Rate:
Adjustable
Clamping Force:
80KN
Opening Stroke:
245MM
Power(W):
22kw
Certification:
CE ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
ISB 800-3
COLOR:
BLUE & BLACK
Warranty:
1 YEAR
AFTER-SALE:
ENGINEER SUPPORT
SHIPPING:
SUPPORT BY TEAM
Voltage:
380V/50HZ
MACHINE DIMENSION:
3.8*1.45*3.0 M
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooven package film
Cover PICC insurance for cargoes
professional shipping team follow
custom clearance support
Port
guangzhou huangpu port
Lead Time :
15 days-25 days after order confirmation
Product Description
QQ20170823095203



MODEL: ISB 800-3

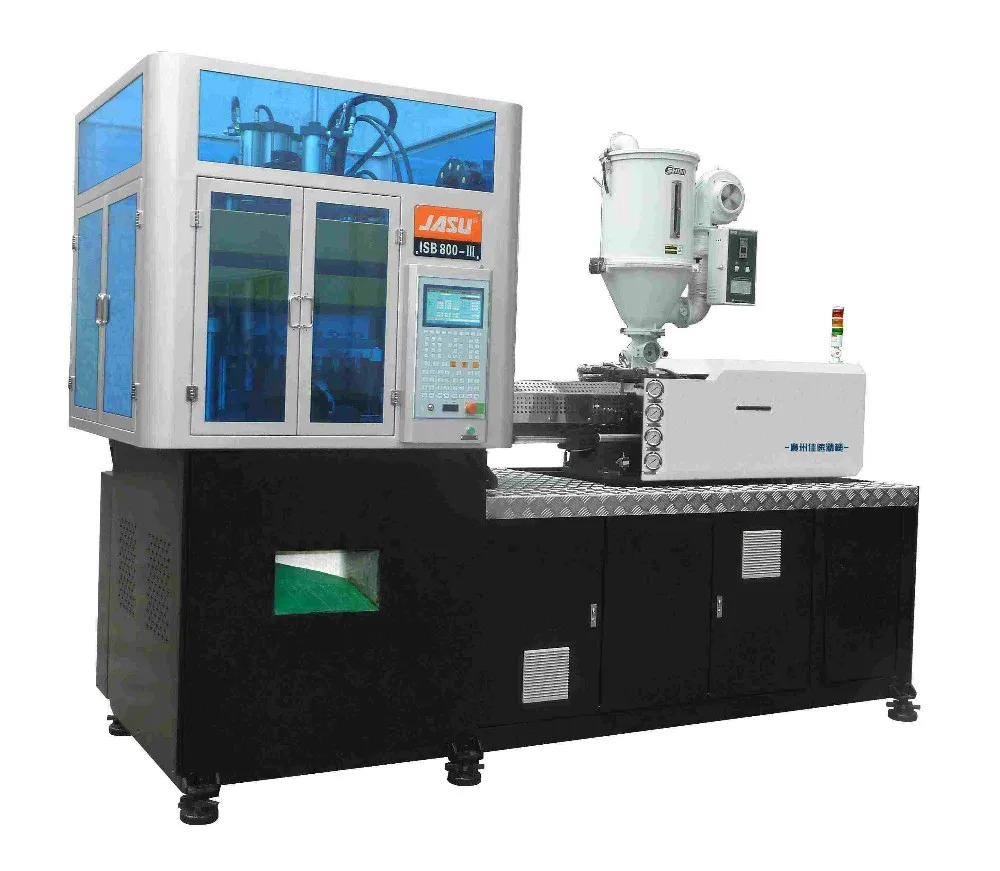

SINGLE STAGE INJECTION STRETCH BLOW MOLDING MACHINE:  ISB 800-3

1.HIGH PERFORMANCE  CLEAN & NICE ,SAVE LABOR & SAVE SPACE

2.HiGH EFFECTIVE           RAW MATERIAL WITHOUT WASTE

3.HIGH ENERGY SAVING  HIGH PERFORMACE

* The whole process including mould injection, strech blowing and off-molding can be finished within one steps, which means more energy efficiency and high quality for product ,the injection blowing molding products are thinner and better uniformity than old style ones, which can save 50% materical , meanwhie, hygienic requirment is guaranteed and avoid the oil pollute of raw material,cover area is small (4.0*1.45*3.0), which can save more cost thn traditional machines and can use  recycling material with the lowest cost..Widely suit for plastic bottle in food ,beverage,comestic,pharmacy ,light bulb, and other application.

 ISB 800-3_-2.jpg_

 `1

ISB MOULD PIC.jpgISO EN.jpg 087.jpg

MACHINE PARAMETER:

Model

ISB 800A(H)-3
Injection Part
Screw Diameter50mm
Screw L/D Ratio20.5:1
Screw Speed0-150RPM
Theoretical Injection Capacity481cm3
Injection Pressure176Mpa
Max. Hydraulic Pressure140Kg/cm
The Actual Injection Quantity(PS):452g(ps)/8Oz
Screw Stroke:245Mm
Clamping Part
Blow Clamping Force:80Kn
Clamp Tonnage:600Kn
Wheel Diameter:800mm
Max. Height of Bottle:ISB:200/IB:260
Open Vertical Mode Trip:430mm/530mm
Others
Max. Pump Pressure:16Mpa
Motor Oil:18.5Kw
Electric Power:12.2Kw
Oil Tank:400L
Overall Dimension(L*W*H):4.10m*1.45m*3.0m



***SINGLE STEP BENEFITS.*****2017 new design save time Plastic bottle injection stretch blow moulding machine machinery for making plastic bottle hot sale

JASU injection blow molding machine advantage, we are national patent products :

1)Electrical servo motor  drive,avoid hydraulic dirty product.

2) Full automatic control ,easy operation.

3) material barrel and hot runner temperature control accurately by PIT

4) save more cost than traditional machine.

5) compact structure. Less space needed

6) Injection:

     Hot runner and temperature control device and standard configuration only change mold to make a new            product.

     Blow:Hydraulic mold clamping,core insert,blow and bottom molding are standard configuration.

     Product release :Ejector is a standard device

7) PROVIDE THE WHOLE SERVICE FOR MOLDING DESIGN AND MANUFACTURE.



If you have interesting in our products, please click her to send us a inquiry , we have someone who tell you  solutions products and professional team to handle your business from pre-sale to after-sale. incluing : comment feedback ,delivery time confirmation , shipping issue, loading cargoes and custom clearance. Thank you !

https://jasu-cnc.en.alibaba.com/?spm=a2700.details.pronpeci14.1.34ec4cd1XtJp6r

Packaging & Shipping
PACKAGE : WOVEN PACKAGE WITH FILM
EXPORT:    BY OCEAN; CONTAINER_.jpg
CUSTOM CLEARANCE :

shipping processing.jpg

Our Services

 Pre-Sales Service                                        After-Sales Service

* Inquiry and consulting support.           * Training how to instal the machine, training how to use the machine.

* Sample testing support.                                           * Engineers available to service machinery overseas.

* View our Factory.                                                               * Shipping Team support

water bottle making one stage machine injection stretch blow molding machine fully automatic

Company Information



GUANGZHOU JASU MACHINE CO., LTD   Specialize in manufacturing one step INJECION BLOW MOULDING MACHINE .we supplied to the high quality, high precision plastic containers making machine with low cost and low energy consumption.

More than 100 employees and 30 professional technicians dedicate themselves to JASU brand series machines, our R&D department devotes to constantly developing new blow technology.We have set up 30 representative offices and 24hours maintenance service network throughout China.

JASU established 2003 with a high reputation from customers china and abroad, specially the oversea customers from Southeast Asia, Middle East, Africa, Europe, South America, etc. At the end of 2014, the export amount took up 60% of the yearly sales.

we are Located in Pearl River delta area, closing to vessel port and air transportation services, special near HONGKONG air port, we have the competitive advantage of a fast delivery system and centralized supply chain center.We sincerely wish to invite the trade partners and import buyers to visit our showroom, as well as the workshop, to discuss the future cooperation.
