V-1060D High Rigidity CNC Vertical Machining Center

FOB Reference Price:Get Latest Price
US $52,000-65,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JASU
Model Number:
V-1060D
Voltage:
220V/380V
Power(W):
11/15KW spindle
Dimension(L*W*H):
3200*2260*2900 mm
Weight:
9000KG
Certification:
ISO9001 CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Control System:
FANUC, Mitsubishi, Siemens
Key parts:
Germany/Japan
Table size:
1300 x 600 mm
Max. loading:
1000 kg
XYZ axis travel:
1000/600/600 mm
Spindle:
BT40-8000 rpm
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details

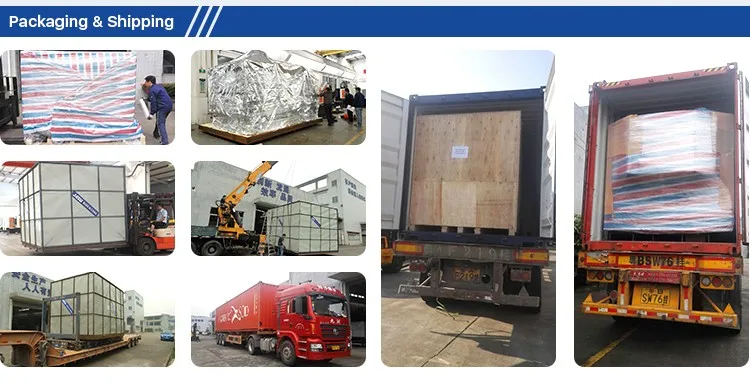

Wooden pallet, Steel pallet and plastic wrapping
Loading by 40HQ container independently
Port
Guangzhou
Lead Time :
15 days


JASU V-D series traveling beam type vertical CNC machining center is middle size range of vertical CNC milling machine center with high speed and high rigidity. It is a new generation of JASU VMC products owning national patent.



The models has full processing function of milling, boring, drilling, tapping and reaming etc. It can be equipped with full enclosed-loop linear scales, high pressure coolant through spindle, 4 axes simultaneous motion etc. It is exactly suitable to the application in various industries, like machinery, automobile, mould, aerospace, motor and valves etc.


 Specification of V-D Series Vertical Machining Center

SpecificationV-850DV-1060DV-1270D
Worktable
Table size (L*W)1050 x 500 mm1300 x 600 mm1400 x 700 mm
T slot size (width * gap)18 x 90 mm18 x 100 mm22 x 120 mm
T slot number 5 pcs 5 pcs 5 pcs
Max. load capacity 1000 kg1000 kg1500 kg
Travel
Max. XYZ axis travel 800/500/500 mm1000/600/600 mm1200/700/700 mm
Spindle nose to worktable 150-650 mm150-750 mm150-850 mm
Spindle center to column surface550 mm650 mm750 mm
Spindle
Spindle taper BT40/SK40/CT40BT40/SK40/CT40BT50/SK50/CT50
Max. spindle speed 8000rpm8000rpm6000rpm
Spindle drive Belt drive Belt drive Belt drive
Feeding
XYZ axis cutting feedrate1-10000 mm/min1-10000 mm/min1-10000 mm/min
XYZ axis rapid traverse 30/30/30 m/min30/30/30 m/min30/30/30 m/min
XYZ axis ballscrew size XYZ:∅40-P10
XY:∅40-P10 Z:∅50-P10XY:∅40-P10 Z:∅50-P10
Positioning accuracy (JIS)±0.003/300 mm±0.003/300 mm±0.003/300 mm
Repeatability (JIS)±0.003 mm ±0.003 mm ±0.003 mm
A.T.C.(Option)
Tool magazine typeArm type Arm type Arm type
Tool capacity 24 pcs24 pcs24 pcs
Max. tool diameter X length 80 x 200 mm80 x 200 mm112 x 300 mm
Max. tool weight7 kg7 kg 18 kg
Toolholder typeBT40/SK40/CT40BT40/SK40/CT40BT50/SK50/CT50
Tool change time (T-T)2.8 sec.2.8 sec.4.8 sec.
Servo motor power
Spindle motor 7.5/11 kw 11/15 kw 11/15 kw
XYZ axis servo motor (Mitsubishi)20./2.0/2.0 kw2.2/2.2/2.2 kw3.0/3.0/3.0 kw
XYZ axis servo motor (Fanuc)1.8/1.8/1.8 kw3.0/3.0/3.0 kw3.0/3.0/3.0 kw
Coolant motor 0.49 kw0.49 kw 0.49 kw
General items
Air required 8 kg8 kg 8 kg
Power capacity20 KVA20 KVA30 KVA
Dimensions2.7 x 2.25 x 2.5 m3.2 x 2.26 x 2.9 m3.4 x 2.6 x 3.0 m
Net weight 7500 kg9000 kg 10500 kg



Standard and optional configuration

Standard configuration

Optional configuration

1.Fanuc/Mitsubishi/Siemens CNC controller
2.RS-232 standard interface
3.RS-232 transmission cable
4.Heat exchanger of electrical cabinet
5.Enclosed cover
6.Auto centralized lub. system
7.Coolant system
8.Spindle rigid tapping
9.Working light
10.Tri-color signal light
11.Pendant handle
12.Coolant gun
13.Safety door
14.Toolkit for setup
15.Leveling blocks and bolts
16.Operation maintenance manual

1.Arm type ATC-T24

2.Chain plate type chip conveyor and chip cart
3.Coolant through spindle
4.Spindle 10000RPM
5.Spindle 12000RPM

6.Spindle BT50-6000rpm (V-1060D)

7.Spindle BT40-8000rpm (V-1270D)
8.Spindle oil chiller

9.NC rotary table - 4th axis (210, 255)
10.Voltage stabilizer
11.Oil mist filter
12.Enclosed top cover
13.Tool setting system
14.Workpiece measuring system
15.Linear scale





3


_12



Gauangzhou Jasu Precision Machinery Co.Ltd is a sabusidiary of JASU International Machinery Group locates in Guangzhou China, which is top 3 supplier of CNC machine tools in South China. JASU owns R&D center and factories in Guangzhou and Suzhou. JASU has been dedicated to manufacturing CNC lathe, machining center, Gantry CNC milling machine and machine tool accessories for 20 years.


Absorbing the design and manufacture of Taiwan and Germany, JASU create a series of highly distinctive, automatic and cost-effective CNC Machine Tools, machine accessory and one step Injection (Stretch) Blow Molding Machine. JASU has got high reputation and trust among customers by means of modern management method, perfect quality, novel design and reasonable price.


Our company faith is “better and faster, it is JASU”.  We are engaged in providing machines with high quality and best service to create benefit for enterprise and create value for customer.



Overseas Agent Wanted


In order to further develop the international market, we are sincerely invite you to be our agent, on the basis of equality and mutual benefit.



As our agent, quite favorable price, professional technical instruction and excellent after-sale service will be offered.
