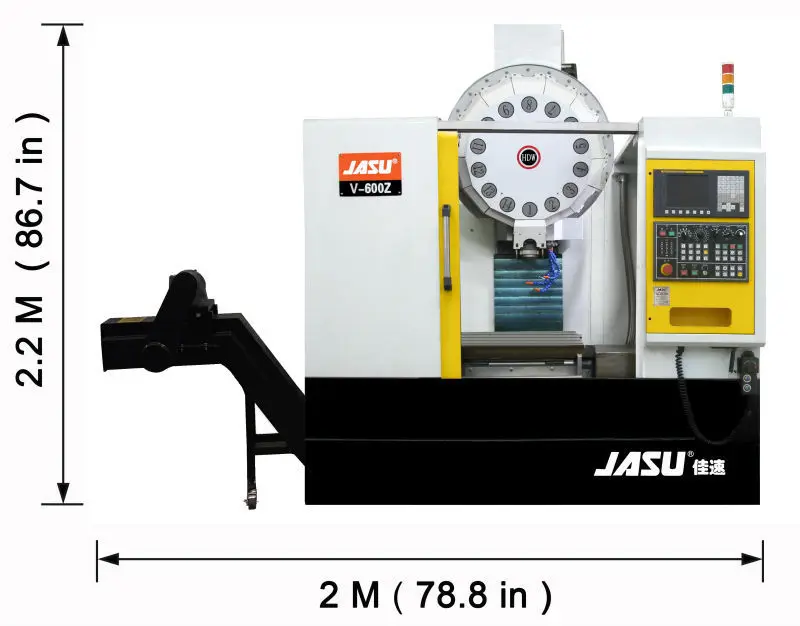

JASU Vertical CNC milling Machine Center V-600Z

FOB Reference Price:Get Latest Price
US $10,000-30,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JASU
Model Number:
V-600Z
Type:
Vertical, CNC Milling
CNC or Not:
CNC
Voltage:
380V
Power(W):
10 KW
Dimension(L*W*H):
2*2.3*2.4
Weight:
3T
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Engineers available to service machinery overseas
Advantage:
milling and drillin
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Guangzhou
Lead Time :
Shipped in 30 days after payment

JASU Linear Guide Milling CNC Machine V-600Z



Basic Information a



Brand

JASUModelV-600Z
Worktable600X400mmMax. Load250Kg
Max. X/Y/Z Axis Travel 600/450/350mmMax. Spindle Speed12000rpm
ControllerFANUC/MitsubishiTools Capability12



Product Description



  JASU Linear Guide Milling CNC Machine V-600Z is purpose built for clamping at a time for complex parts such as plate, shell, cam, mold etc, completing drilling, milling, boring, expansion, reaming, tapping and other process, which is suitable for multispecies, small batch production, especially for the processing of high precise parts.



Pictures

 5











1A



Machine Parameter



ITEM V-600Z
WorktableTable typeDrilling and Tapping
Table size/(L*W)600x400
T-slot size/mm95x14x5
Max load on the table/kg250 kg
TravelMax. X/Y/Z axis travel600 / 450 / 350
Spindle nose to table surface/mm150-500
Spindle nose to column surface/mm400
SpindleSpindle taperBT30
Max. Spindle speed/rpm (Standard)12000 rpm
Spindle driven (Standard)Direct Drive
Tool unclampMechanical type
FeedingMax cutting feed rate(MM/min)10000(mm/min)
X,Y,Z rapid traverse48/48/48m/min
A.T.CTool Magazine typeHat Type
Tool Magazine  capacity12
Max. tool diameter and lengthØ 120x200
Max. tool weight3 kg
Tool shank type BT30
Servo MotorSpindle motor3.75/5.5Kw
X/Y/Z axis servo motor (Mitsubishi)1.5/1.5/2.2 Kw
Coolant motor 0.49 Kw
GeneralAir Requirements6KG
Power Capacity10KVA
Measurement2.0x2.3x2.4m
N.W.3T



Detailed Description



  JASU Linear Guide Milling CNC Machine V-600Z Characteristic:



1.Machine bed:
        JASU Linear Guide Milling CNC Machine V-600Z bed is made by the advanced resin sand casting material, internal stress eliminated by special method. With the exquisite design, the bed has the excellent performance for machining and accuracy requirements.



2.Transmission Shaft:
          JASU Linear Guide Milling CNC Machine V-600Z adopt the linear guide for X/Y/Z axises, made by the advanced resin sand casting material, load ability improved;



3.Lead Screw:
        High accuracy and high quality ball screw is adopted for JASU Linear Guide Milling CNC Machine V-600Z to make sure the positional accuracy;



4.Spindle Motor:
        JASU Linear Guide Milling CNC Machine V-600Z high quality motor make sure that the lathe perform well at high or low speed and light or heavy cutting(7.5/11Kw);



 5.Electrical Cabinet:
        Heat exchanger is installed in electricity cabinet to guarantee the stable of system. Coiler is equipped out side, it is heat, oil and water-resistant;



6.Lubrication System:

      Automatic Centralized Lubrication System of  JASU Linear Guide Milling CNC Machine V-600Z can provide timely and accuracy lubrication according to the lathe situation to make sure the machine can work continuously;



7.Advanced FANUC/Mitsubishi Controller.



8.High Speed Milling



CNC Milling Machine



CNC Milling



Standard Configuration



1.Fanuc 0i mate MD controller

2.Standard CF card interface(FANUC 0I system)

3.RS-232 interface

4.RS-232 communication line

5.3-color indicator

6.Working lamp

7.Heat Exchanger for Electrical Cabinet

8.Automatic centralized lubrication system

9.Spindle Rigid Tapping

10.Tools cabinet

11.Operation manual

12.Maintenance manual

13.Basic adjustment screw and washer



Optional



1.GSK controller;
2.Chip conveyor and chip bucket;
3.Spindle 12000RPM;
4.Automatic voltage stabilizer;
5.CNC rotary table;
6.Oil mist separator.

7.Disc tool magazine, 12 position.



Looking for Agents



With the 20 years development, JASU machinery has won a good reputation from our clients of domestic and international by excellent quality with exquisite design and manufacturing.


In order to further develop the international market, we are sincerely invite you to be our agent, on the basis of equality and mutual benefit.



As our agent, quite favorable price, professional technical instruction and supporting, excellent after-sale service will be offered. Warmly welcome you to our company for visiting.


Looking forward to your joining in.



Company Profile



Guangzhou JASU Precision Machinery Co., Ltd. is a wholly owned subsidiary of JASU International Machinery Group, which is held by Sunny(HK) Group, based on the cooperation of Taiwan and Germany specialized machine company. The core subsidiaries JASU International Machinery Group include: Guangzhou JASU Precision Machinery Co., Ltd., Suzhou ZHONGGU Precision Machinery Co., Ltd., Taiwan JASU Machinery Industry Co., Ltd., German Krauss Machinery Co., Ltd.


Absorbing the design and manufacture of Taiwan and Germany, JASU create a series of highly distinctive, automatic, cost-effective CNC Machine Tools, machine accessory and one step Injection(Stretch) Blow Molding Machine. JASU has got high reputation and trust among customers by means of modern management method, perfect quality, novel design and reasonable price.


Our company faith is “More Better More Faster, It is JASU”. We are engaged in providing machines with high quality and best service to create benefit for enterprise and create value for customer.



DSC_9389



psbCADN30I4



Anytime is welcome to our three factories !

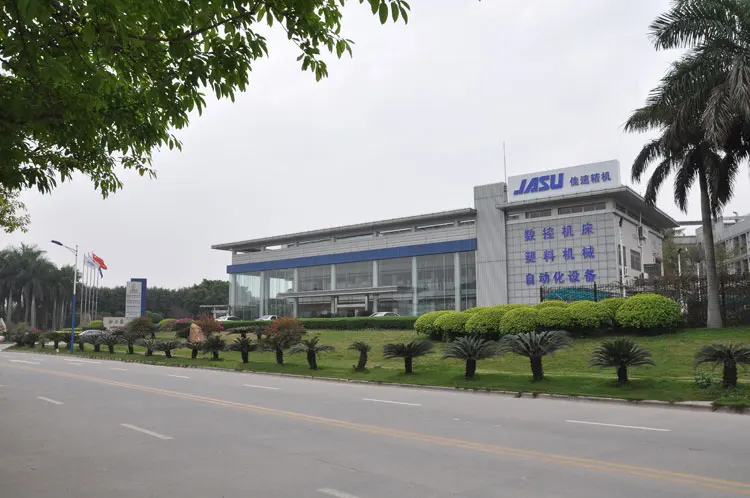

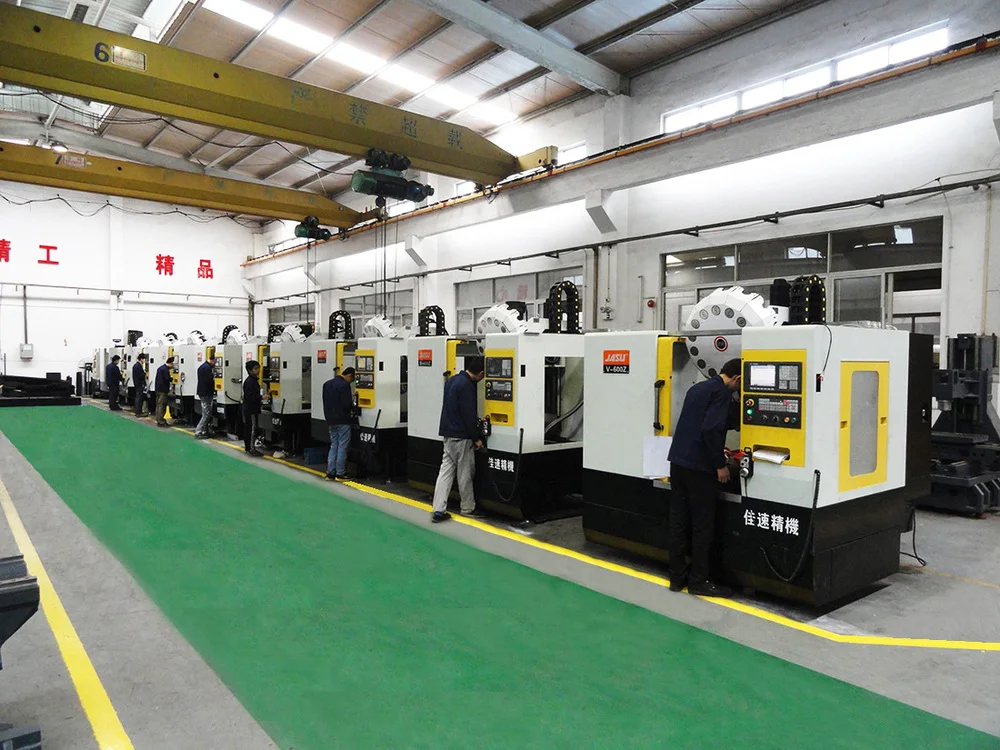

Guangzhou Factory ( South of China,headquaters ): Mainly for foreign trade , after sale service , producing CNC Turning Machine and Machining Center.
