JASU V-D series vertical cnc machine center

FOB Reference Price:Get Latest Price
US $50,000-55,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JASU
Model Number:
V-850D
Voltage:
380V
Dimension(L*W*H):
3.2x3.1x2.9m
Weight:
5T
Certification:
CE
Warranty:
1 year warranty
After-sales Service Provided:
Engineers available to service machinery overseas
Worktable Size:
1050 x 500 mm
X/Y/Z Travel:
800/500/500 mm
CNC controller:
FANUC/Mitsubishi/Siemens
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case,Standard,Export Package.
Port
Guangzhou
Lead Time :
About 80 working days after receiving your deposit

China JASU V-850D 3 axis vertical cnc milling boring tapping drilling machine center

JASU V-D series vertical cnc machine center

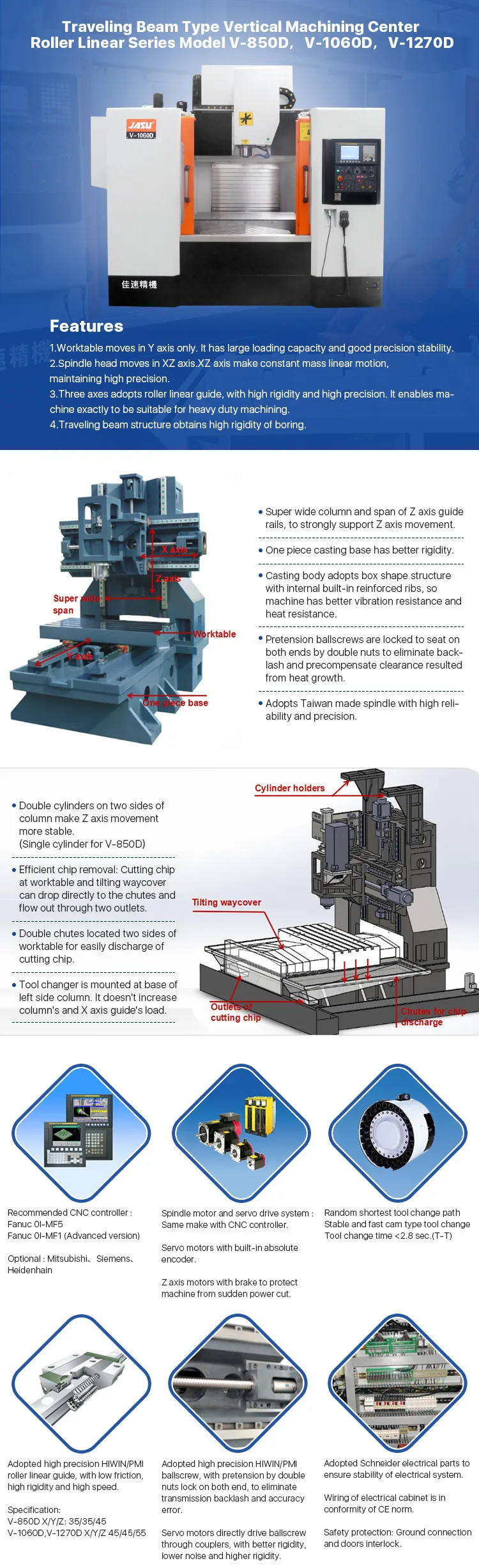

JASU V-D series vertical cnc machine center is middle size range of vertical milling center with high speed and high rigidity. It is a new generation of JASU VMC products owning national patent. The series has full function of milling, boring, drilling, tapping and reaming etc. It can be equipped with full enclosed-loop linear scales, high pressure coolant through spindle, 4 axes simultaneous motion etc. It is exactly suitable to the application in various industries, like machinery, automobile, mould, aerospace, motor and valves etc.

This model has been exported to South Korea, Vietnam, Turkey, Russia, Netherlands, Peru etc.

China JASU V-850D 3 axis vertical cnc milling boring tapping drilling machine center

China JASU V-850D 3 axis vertical cnc milling boring tapping drilling machine center

 Specification of V-D Series VMC

SpecificationV-850DV-1060DV-1270D
Worktable
Table size
1050 x 500 mm1300 x 600 mm1400 x 700 mm
T slot size (width * gap)18 x 90 mm (5pcs)
18 x 100 mm (5pcs)
22 x 120 mm (5pcs)
Max. load capacity 1000 kg1000 kg1500 kg
Travel
Max. XYZ axis travel 800/500/500 mm1000/600/600 mm1200/700/700 mm
Spindle nose to worktable 150-650 mm150-750 mm150-850 mm
Spindle center to column surface550 mm650 mm750 mm
Spindle
Spindle taper BT40BT40BT40
Max. spindle speed 8000rpm8000rpm8000rpm
Spindle drive Belt drive Belt drive Belt drive
Feeding
XYZ axis cutting feedrate1-10000 mm/min1-10000 mm/min1-10000 mm/min
XYZ axis rapid traverse 30/30/30 m/min30/30/30 m/min30/30/30 m/min
XYZ axis ballscrew size ∅40-P10
XY:∅40-P10 Z:∅50-P10XY:∅40-P10 Z:∅50-P10
Positioning accuracy (JIS)±0.003/300 mm±0.003/300 mm±0.003/300 mm
Repeatability(JIS)±0.003 mm ±0.003 mm ±0.003 mm
A.T.C.
Tool magazine typeArm type Arm type Arm type
Tool capacity 24 pcs24 pcs24 pcs
Max. tool dia. x length 80 x 200 mm80 x 200 mm80 x 200 mm
Max. tool weight7 kg7 kg 7 kg
Tool change time (T-T)2.8 s2.8 s4.8 s
Servo motor
Spindle motor 7.5/11 kw 11/15 kw 11/15 kw
XYZ axis servo motor (Fanuc)1.8/1.8/1.8 kw3.0/3.0/3.0 kw3.0/3.0/3.0 kw
Coolant motor 0.49 kw0.49 kw 0.49 kw
General items
Air required 8 kg8 kg 8 kg
Power capacity20 KVA20 KVA30 KVA
Dimensions2.7 x 2.25 x 2.5 m3.2 x 2.26 x 2.9 m3.4 x 2.6 x 3.0 m
Net weight 7.5 T
9 T 1.05 T

Specifications are subject to change without notice.



Standard Configuration



No.Standard accesories Qty
1FANUC CNC system package 0i-MF(5), including Beta series servo motors and servo drive
1 set
2Standard RS-232 interface & communication cable, USB, CF card interface1 unit
3Spindle rigid tapping 1 unit
4Arm type ATC T24 1 set
5Tool pressure cylinder 1 pcs
6Pneumatic system 1 unit
7Fully enclosed cover 1 set
8Coolant system 1 set
9Auto centralized lubrication system 1 set
10Working light, Working signal light 2 pcs
11Heat exchanger of electrical cabinet 1 pcs
12Spindle air blow, coolant gun, air gun, auto safety door
13Toolkit for setup1 set
14Leveling screws and blocks 1 set
15English operation maintenance manual, Fanuc manual (CD), Electrical manual 1 set



Optional Configuration



No.Optional accessories Remarks
1Siemens CNC sytem 828Dsame price with Fanuc 0i-MF5
2Mitsubishi CNC system M70B
same price with Fanuc 0i-MF5
34th axis function of  CNC system (without motor, drive and hardware)
4Belt spindle 10000rpm
5Direct spindle 10000rpm
6Direct spindle 12000rpm

7Motor spindle 15000rpm

9Spindle oil chiller
10Oil mist filter
11CNC rotary table (Available size 170, 210)
12Manual or automatic tailstock

13Tilting rotary table (3+2 axis)5 axis with 4 axis simultaneous control
13Coolant through spindle 30 Bar Only for belt spindle and motor spindle
14Chain type chip conveyor & chip cart
15Oil skimmer
16Renishw tool setter
17Renishaw part probe
18Overseas 2 years warranty for CNC system (For Fanuc and Mitsubishi only)
No free guarantee from CNC system supplier for the exported CNC machine



 Notice:

1.The price is based on standard configuration. If any optional accessory is required, please contact us by any available way.

2.More information on your workpiece, such as drawing, material, application, cycle time required etc. will be more helpful for us to recommend a suitable solution to you.

3.CAT40, SK40 taper is alternative, it will increase cost US$800 for tool changer.

4.The listed price is based on FOB (Guangzhou, Shenzhen, Shanghai). For estimated shipping freight, please contact us.
